MSFM ULTRASONIC FLOW METER

Designed to monitor raw sewage, industrial effluent and storm waters, the MSFM s2.5T ultrasonic wastewater flow meter is self-contained and battery-powered. This ATEX insertion multi-sensor flow meter is suitable for applications in sewer flow monitoring in combined sewers, open channels and storm sewers.

Industrial effluent and discharge monitoring, protecting streams and river waters, along with monitoring wastewater treatment processes are just a few of the many reasons for water sampling.

The MSFM S2.5T ultrasonic wastewater flow meter includes new processing technology that enables on-board flow calculation. With this, an alarm can be triggered to send a pulse to an automatic water sampler once a predetermined volume of water has passed. This is used for accurate flow proportional sampling.


MULTI-PARAMETER MEASUREMENTS

The addition of a temperature sensor is hugely beneficial to users wanting to identify inflow and infiltration.

When tidal water or groundwater infiltrates the sewer water, there will be a change in the water temperature as well as a change to the volume of water in the sewer.

Using the velocity, depth and temperature to determine the flow rate ensures a more accurate reading that doesn’t require weirs or flumes and automatically adapts to changes in production and intense weather that can affect the flow rates.

The MSFM S2.5T sensors run off a 12V lithium-ion rechargeable battery. Once fully charged, users can expect the battery to last in excess of 15 weeks when using a logging rate of 2 minutes. The lithium-ion battery is rechargeable and has a typical life expectancy of 5 years.





FLEXIBLE COMMUNICATIONS AND SOPHISTICATED ALARM REGIMES

The MSFM S2.5T is compatible with 2G, NB-IoT, LTE-M1 networks, making it suitable for use anywhere in the world.

Data can be recorded at user defined intervals between 1 minute and 1 day. Logged data is transmitted hourly, daily, weekly or monthly via 2G, NB-IoT, LTE-M1 at programmed intervals.

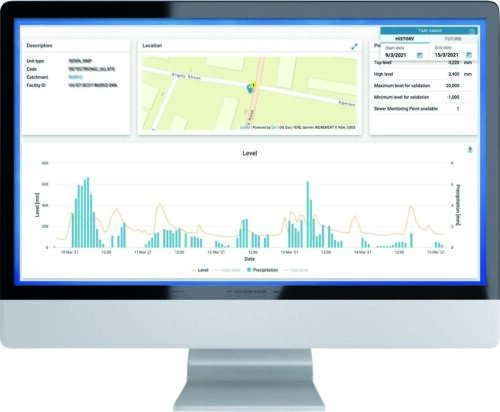

Data is transmitted to DetecData, a user-friendly, multi-language, secure web portal which users can access anywhere at any time. It takes the data received from monitoring equipment within the catchment and turns it into actionable information. That enables you to make smart decisions based on inflow and infiltration rates, flow analysis, event duration monitoring and rainfall analysis.

DetecData allows settings to be modified and profiles created for alarms, thresholds, logging rates and transmission frequency. High / low threshold and profile alarms can be programmed to automatically forward to multiple devices by text or email.


DATA SCREENING

Detectronic’s dedicated DATA CENTRE monitors your network and uses your data to detect blockages before they cause flooding and pollution. Using our data screening and reporting services, you can reduce the number of alarms received from thousands to hundreds.

  • Real-time data collection and monitoring helps you better understand your sewer network.

  • Using human intelligence means you only receive validated intervention reports.

  • Site data, national rainfall data and local environmental data can be integrated for every site.

  • Designed to be compatible with data from any make of telemetered monitors.





INTELLIGENT ALGORITHMS

DetecAnalytics uses predictive analysis techniques to turn raw data into insights that are used to build an advanced automated alarm system. It uses algorithms, capable of cross-referencing suites of data accumulated by the Detectronic Data Centre from over 2 billion data points from sewer networks, catchments and live feeds.

Every waste water sewer catchment has its own specific DNA. Monitoring and local knowledge allow a profile of “normal” behaviour to be built, enabling anomaly detection. Catchment based rules are used to aid the formation of an alarm coefficient, which ensures the alarm hierarchy is updated with reliable information for final alarm protocol decision making and used to highlight risk.

Using additional information and powerful mathematical processing, reveals the true behaviour of the catchment. Alarm profiles allow DetecAnalytics to prioritise severe disturbances from small disturbances, resulting in greater confidence in the system when alarms are forwarded.
