ilink wireless Sensor

Wireless Measure & Calibration Design for the Field & Laboratory




How does it work?

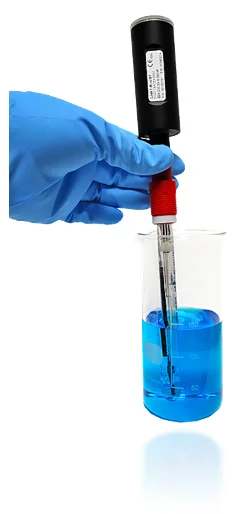

Connect the ISM-Sensor to the iLink. Direct or with an extension cord. Activate Bluetooth on your Smartphone and confirm the connection within the iSense App.. READY.

Capabilities:

A quick available measurement system with data logging function and transmission of data to third parties at the touch of a button (by the use of smartphones).

    • The possibility to get measurement values from the ATEX zone 1.

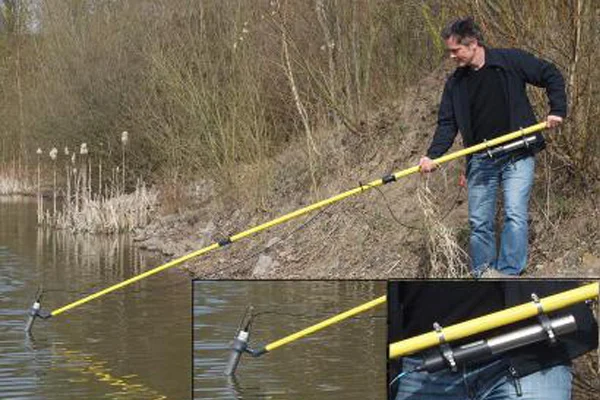

    • The possibility of on-site / field calibration.
    • The possibility of subsequent data transmission (calibration data, measuring values)

    Technical Specifications:

    Certification: QD ID: B019224; FCC ID: X3ZBTMOD3; IC: 8828A-MOD3

    ATEX identification of ISM connection: II (2)G [Ex ib Gb] IIB

    Communication Bidirectional, transmission interval: 1 sec.

    Dimensions: H 87 x W 32 mm, weight 82 g.

    Protection Class: IP 67 (connected to sensor)

    Rel. Humidity: 5 to 95% RH (non-condensing)

    Bluetooth Module 2.4 GHz, Bluetooth® v 3.0 Range: 5m

    Sockets: ISM for sensors (ATEX II (2)G [Ex ib Gb] IIB) Mini USB for cable-based transmission (no ATEX)

    Battery: 3.7 V Li-Ion Akku Standby: 20 days Operation: 8 to 12 hours

    Charging: 5 V DC, Micro-USB connector

    Temperature: Ambient: -15 °C .. + 50 °C

    Intrinsically Safe Sensor Connections: Digital ISM-1wire-Bus (max. length 10m) ISM® Uo 6,6 V; Io 28 mA; Lo 100mH
